Automatic Solder Paste Jet Printing Machine P1

  • Product Description
P1 Introduction:

P1 is a fully automatic solder paste printing machine, it can be solder paste on PCB with instantaneous velocity jet. In the small production process quantities and many varieties, instead of automatic screen printing machine meeting the requirment of rapid production. It has the following advantages:

1. No template. It can reduce the waiting time of Template processing while reducing the clean template, storage and other costs.

2. Fast new import. Through data import, efficient completion of the production needs of small quantities and many varieties.

3. To reduce the use of solder paste. By controlling the dedicated valve, can precise control the amount of using solder paste, it generally can reduce by more than 30% waste of the solder paste.

P1 Features

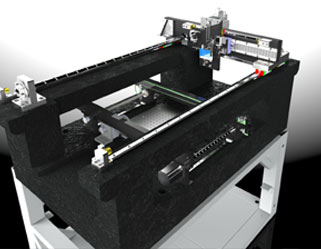

1. With super high precision moving platform technology which is made by integrated design of natural granite. Make sure P1 can get to use for more than 10 years without any effect on moving precision. Meanwhile, integrated structure ensures a very excellent function in shock resistance.

2. World-class top speed motion system: Import European original magnetic levitation high precision linear motors and encoders, to minimize mechanical wear and ensure X axis with high precision and high speed performance for long-term use. High speed performance can be up to 4M/S.

3. Industry leading vision system: Using industry digital camera and high quality lenses, making sure the accuracy and speed of Mark position.

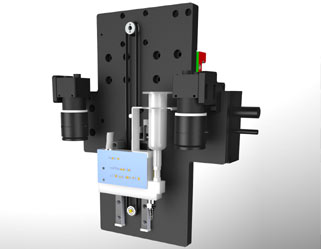

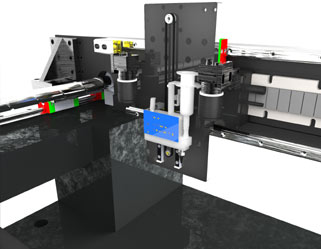

4. Configured imported solder paste/printing device special for Silver plastic, can be up to the minimum diameter of 0.15mm and minimum response time of 2ms. Regarding to solder paste technology, it can preheat the room temperature to 60˚C, ensure the fluidity of the solder paste and the non-touch nozzle getting to microns under the condition of the max remove speed, keeping high stable welding joints and accurate quantity of solder paste. It will meet the printing demand of nearly all the SMD component.

5. Intelligent board transmission system can automatically adjust the width and plywood. Complete your automated intelligent production.

6. Can conveniently import CAD and Gerber file, including nearly all the common format.

7. Through the modular design, it can easily go upstairs by the elevator without smashing the bricks and windows, which meets the using situation of lab and central office.

8. Configured with different special printing device, meeting different demands of solder paste and sliver paste.

The factories of Termway around the world have set up the quality management system and environmental management system, and achieved international authentication of ISO9001:2008 and ISO14001:2008.

Standard:

1. a set of industrial computer

2. a solder paste printing apparatus

3. solder paste printing apparatus control system set

4. a nozzle

5. solder bucket set

6. Mark set point identification system

Optional:

1. Silver special printing device

2. The nozzle

3. Industrial pump

P1 Technical
1 Max mounting Size 350mm×350mm
2 Min mounting size 50mm×50mm
3 Max Z Axis move range 20mm
4 Typical speed 40000cph
5 Theoretical Max mount
speed
72000cph
6 Motion System X-axis linear motor + encoder positioning
Y-axis servo motor drives + ground ball screw + grating
7 X.Y axis precision ±0.001mm
8 Repeat mount precision ±0.015mm
9 Position manner Visual Position
10 Pad size Minimum 0201 (with optional 01005) or
more components and the size of the
IC (pin spacing of less than 0.4mm IC,
ball diameter less than 0.4mm of BGA,
with optional)
11 Programmatically CAD/GerberFile Import / Import Video Learning / keyboard
input
12 The minimum diameter of the solder paste 0.3mm (0.15mm Paste the nozzle to be customized)
13 Paste temperature control Room temperature to 60˚C
14 Choose paste Solder paste or silver paste (optional)
15 Operation system WINDOWS XP, WIN7
16 Compressed air 0.6Mpa, Gas Flow≥200L/M
17 Power 380v, 50Hz, 10kW
18 Weight 750kg
19 Dimension 1685(L)×780(W)×1440(H)
